Waveshare Can FD Protocol Converter, Can FD To ETH/RS232/RS485 Bidirectional Data Communication, Supports 5 Data Conversion Modes and Can 2.0A/2.0B Protocols, Heartbeat & Registration Packets Support

Marca: Waveshare
Interfaz de hardware: Ethernet
Velocidad de transferencia de datos: 5 Megabits por segundo
Fabricante: Waveshare

- The CAN FD ETH RS232/RS485 Converter is a DIN-rail CAN FD to Ethernet/RS232/RS485 bidirectional converter, featuring high-speed, low-latency, stable performance, ease of use, and cost-effectiveness

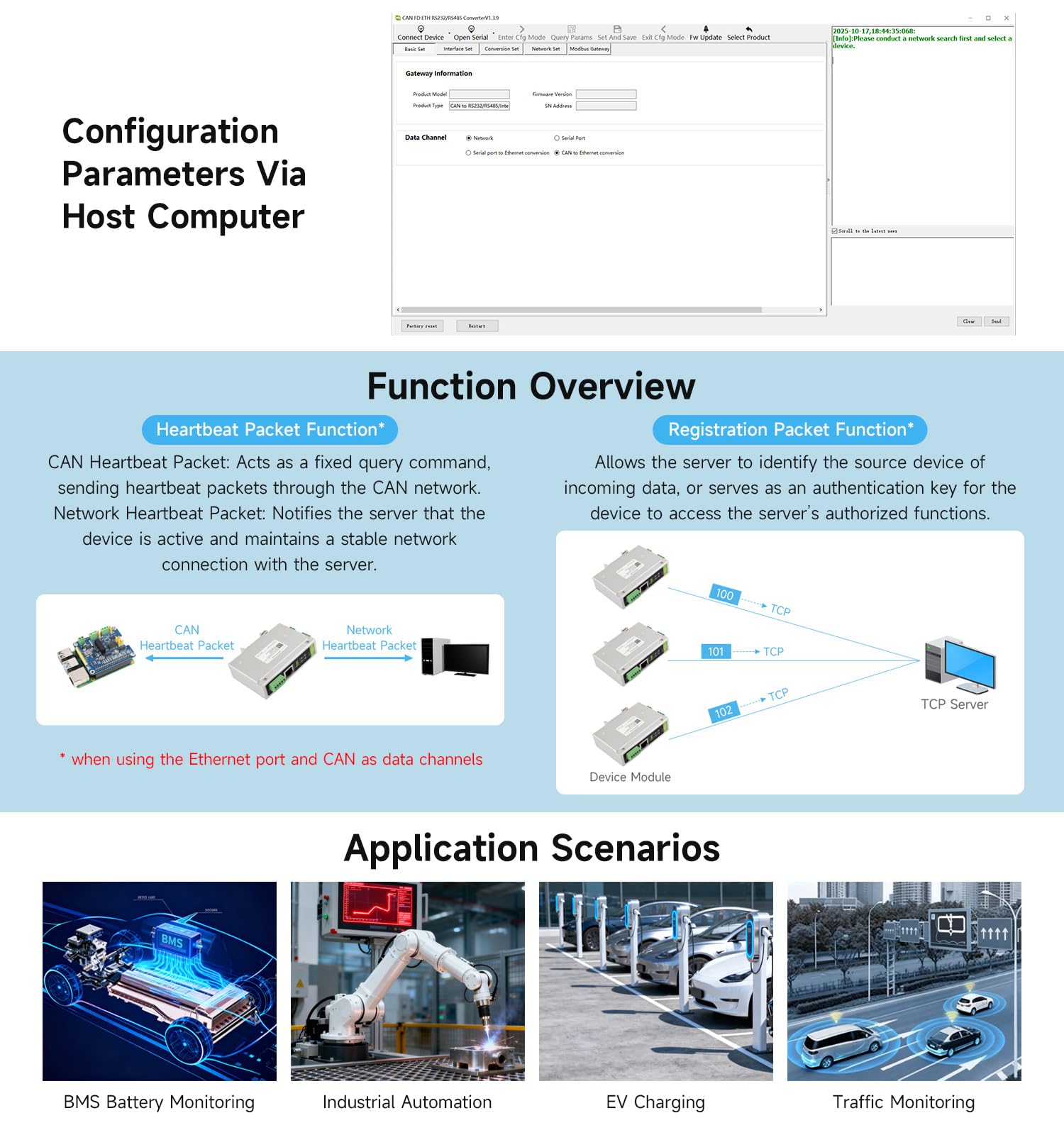

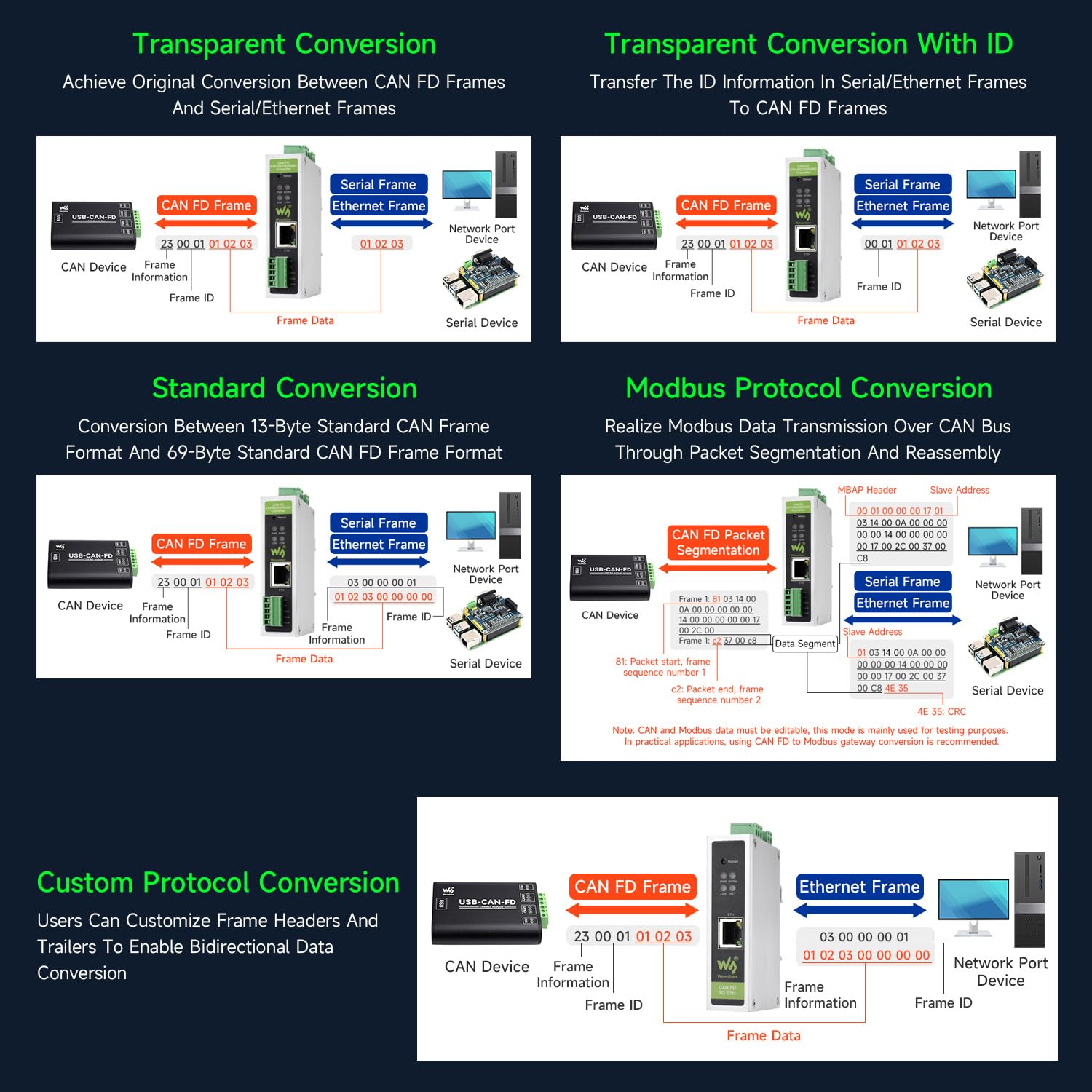

- It supports five data conversion modes: transparent conversion, transparent conversion with ID, standard protocol conversion, Modbus protocol conversion, and custom protocol conversion.
- Enables interconnection between CAN and Network port / serial port devices, compatible with CAN FD and CAN 2.0A/2.0B protocols

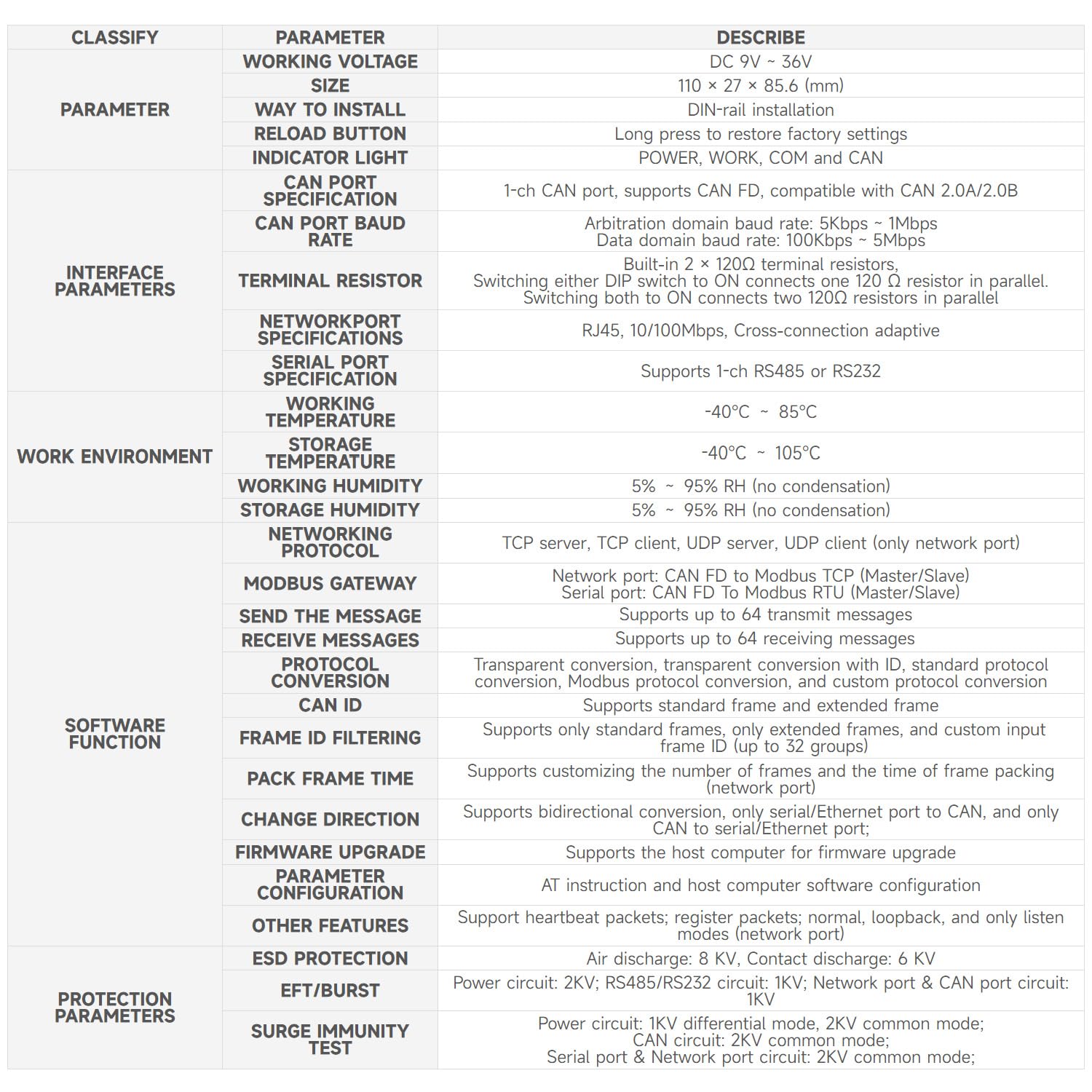

- Features industrial-grade design, supports -40°C ~ 85°C stable working, 9V ~ 36V wide power input, 5Kbps~1Mbps CAN FD arbitration domain baud rate, and 100Kbps~5Mbps CAN FD data domain baud rate

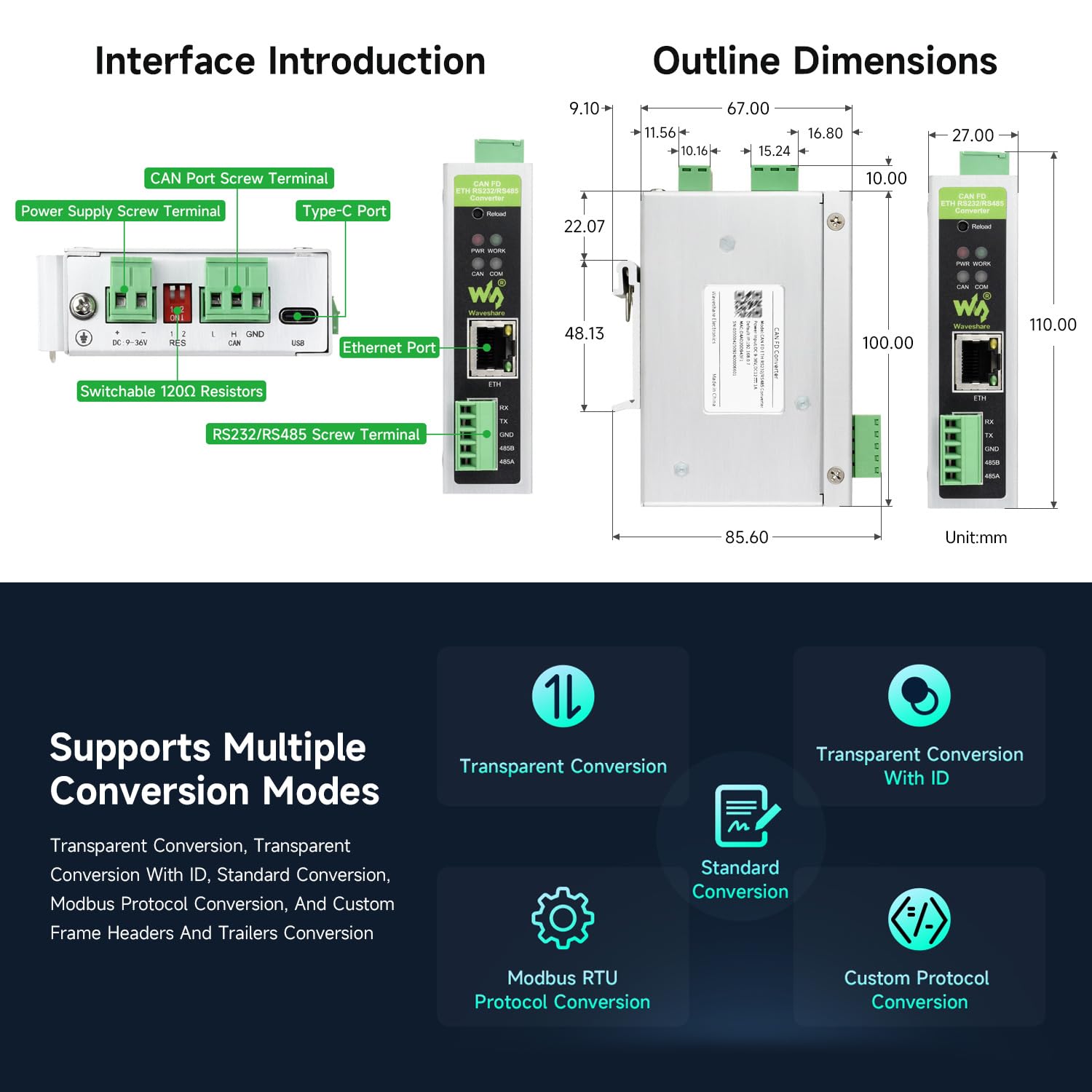

- Supports parameter configuration via host computer, built-in 120Ω terminal resistors (switchable via DIP switches), supports DIN-rail mounting, easy to configure and install
