Waveshare 4G/3G/2G/GSM/GPRS/GNSS Hat for Raspberry Pi 4 Jetson Nano Based on SIM7600E-H Supports LTE CAT4 for Downlink Data Transfer

Marca: Waveshare
Nombre del modelo: SIM7600E-H 4G HAT
Modelo de CPU: ARMv7
Tecnología de conectividad: LTE CAT4, 3G, 2G, GSM, GPRS, TCP, UDP, HTTP, FTP, Bluetooth, Wi-Fi 802.11 AC, USB, GPIO
Componentes incluidos: Ranura para tarjeta SIM, ranura para tarjeta TF, conector de audio integrado con decodificador de audio, 2 indicadores LED, traductor de voltaje integrado, recursos de desarrollo y manualVer más
Sistema operativo: Raspberry Pi OS (32-bit), version December 2021
Fabricante de CPU: VIA
Estándar de comunicación inalámbrica: 802.11ac
Dispositivos compatibles: Raspberry Pi 4, Jetson Nano, y posiblemente otros tableros de Raspberry Pi con el mismo encabezado de GPIO de 40 pinesVer más
Tecnología de memoria RAM: LPDDR4

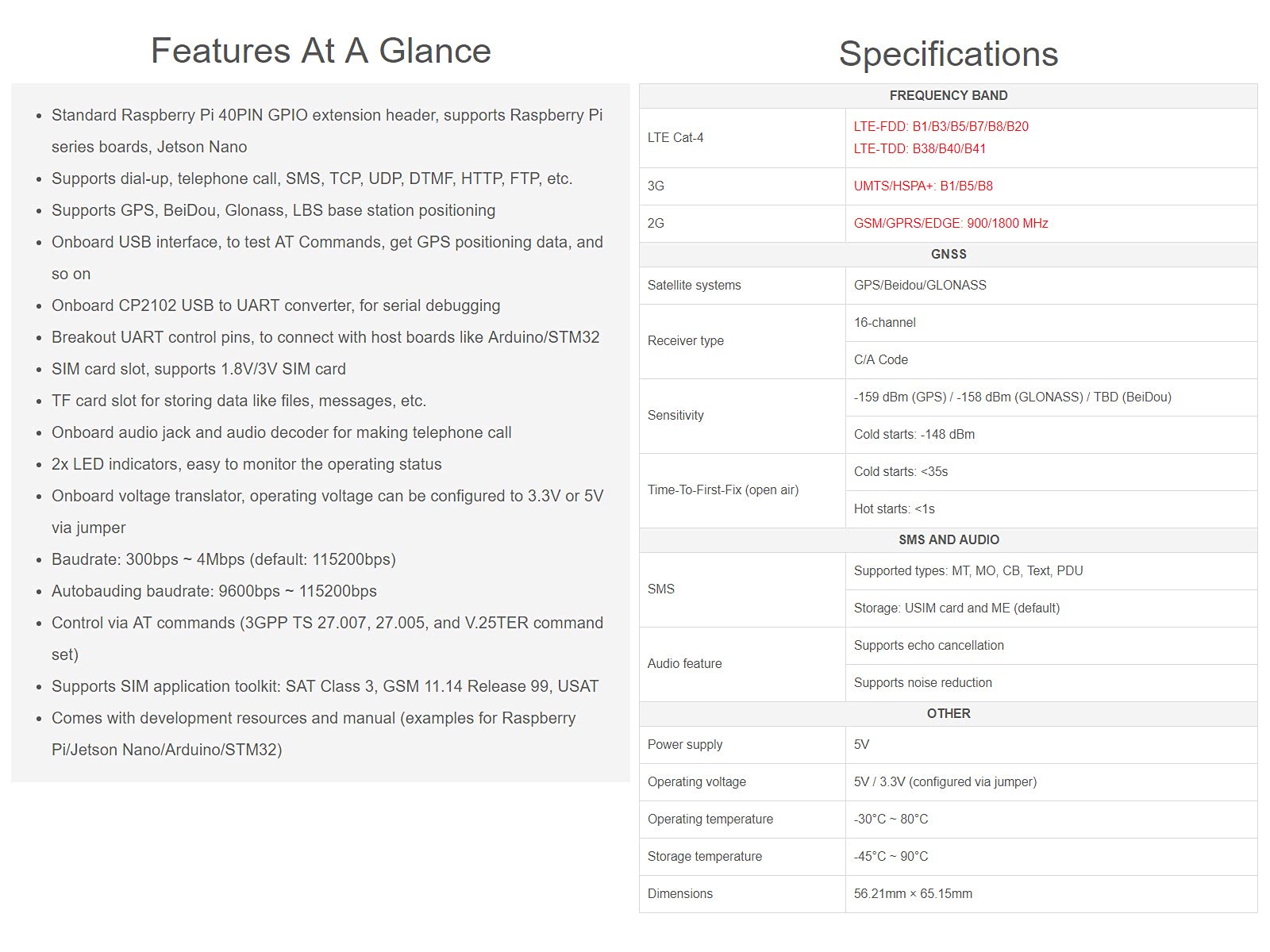

- The SIM7600E-H 4G HAT is a 4G/3G/2G communication and GNSS positioning module, which supports LTE CAT4 up to 150Mbps for downlink data transfer. it is pretty low power consumption.
- You can connect this 4G module with computer to surf the Internet, or attach it onto Raspberry Pi to enable functions like 4G high speed connection, wireless communication, making telephone call, sending SMS, global positioning, etc.

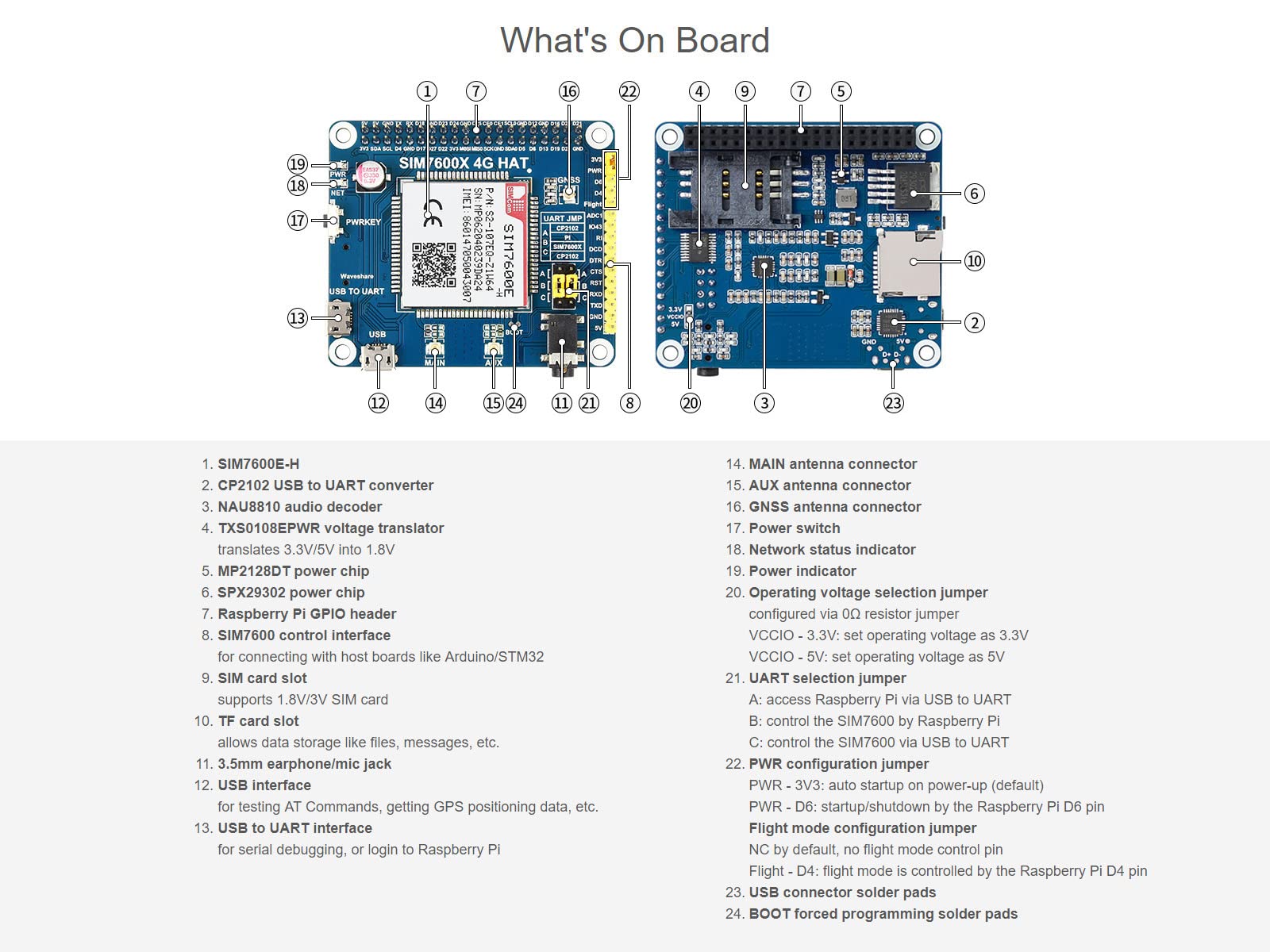

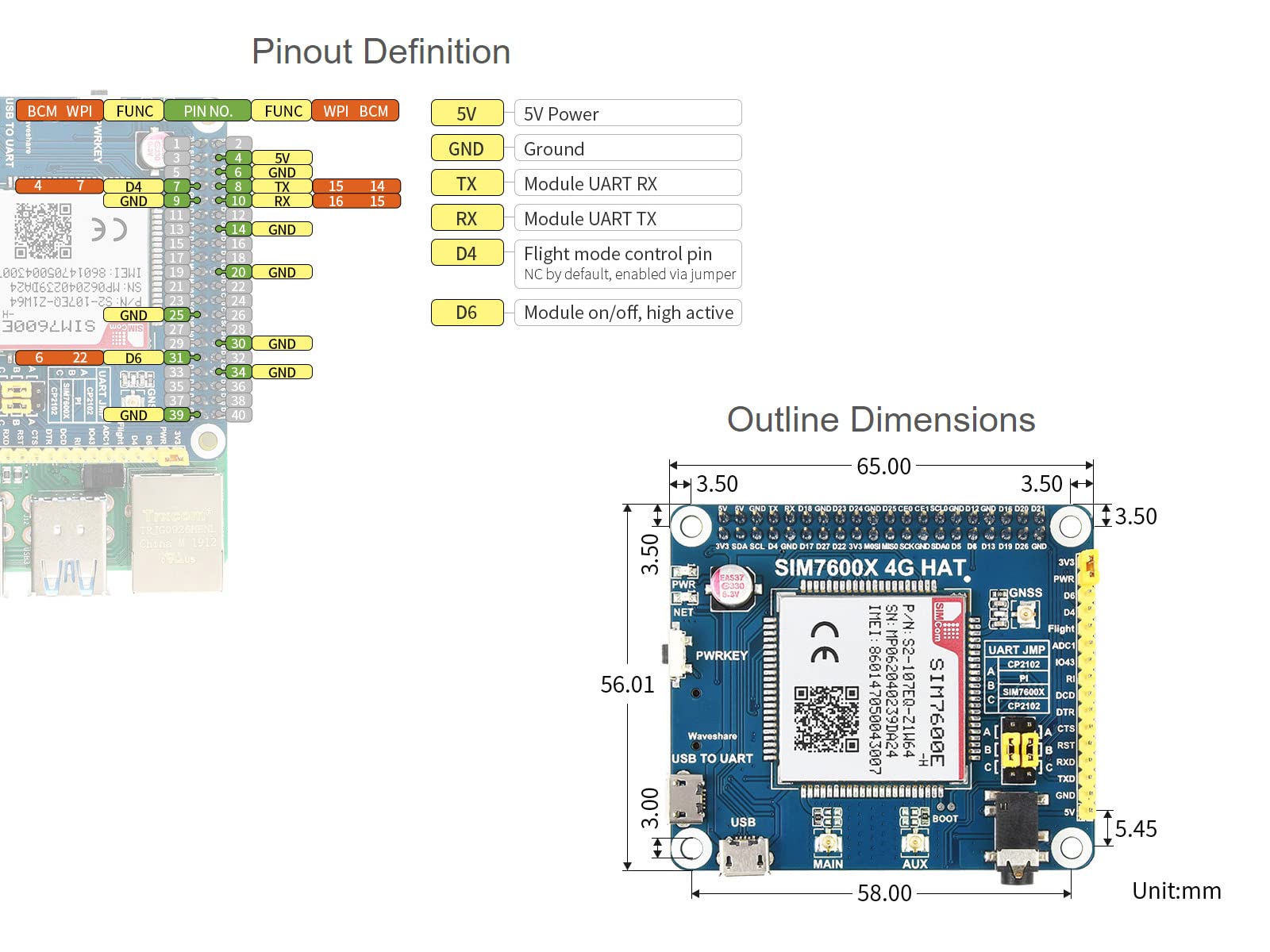

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT.
- Baudrate: 300bps ~ 4Mbps (default: 115200bps). Autobauding baudrate: 9600bps ~ 115200bps. Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set).

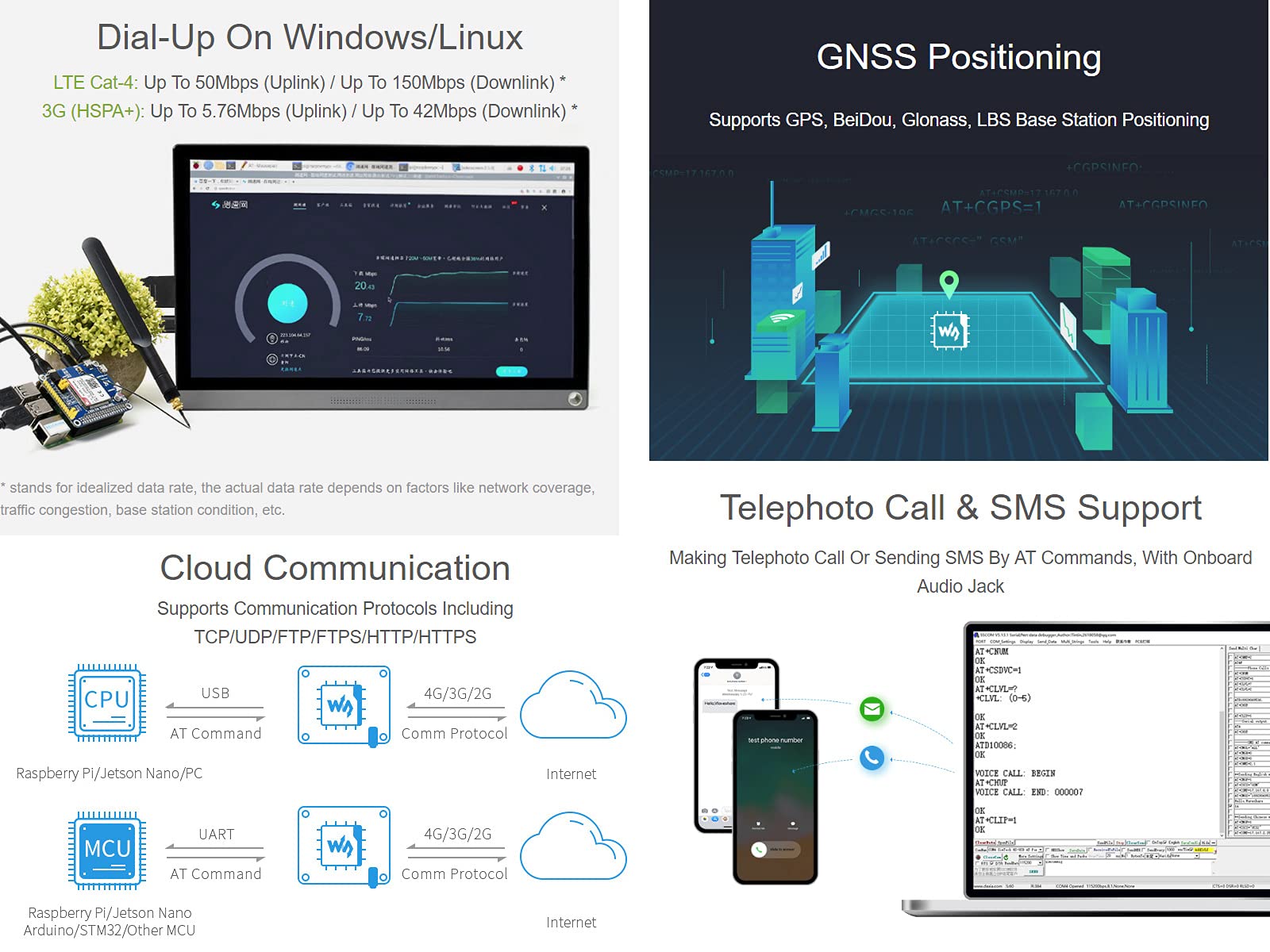

- Supports dial-up, telephone call, SMS , mail, TCP, UDP, DTMF, HTTP, FTP, etc. Supports GPS, BeiDou, Glonass, LBS base station positioning.
